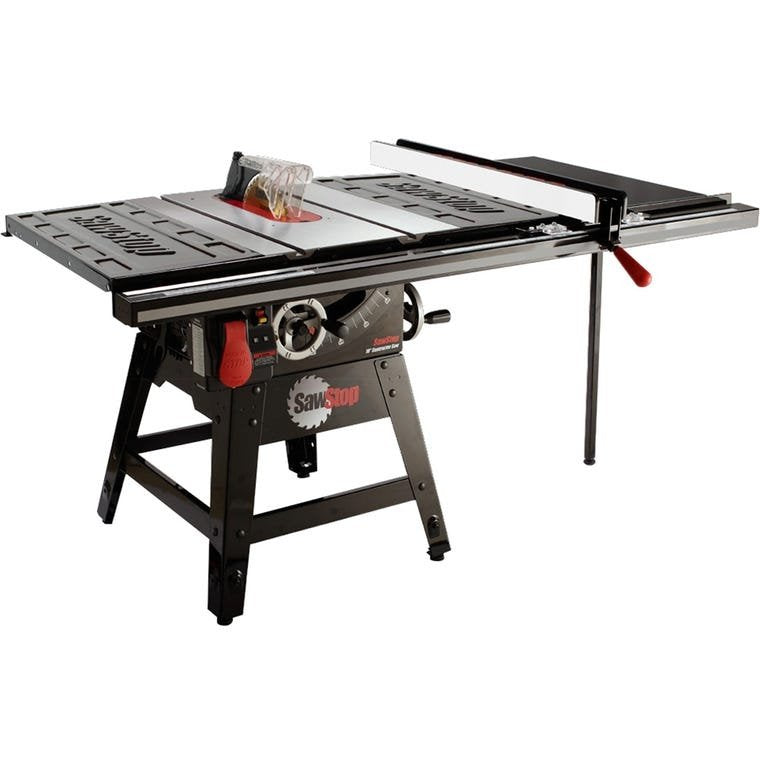

SawStop Contractor Table Saw CNS175-TGP236

SawStop Contractor Table Saw CNS175-TGP236

$1,152
$1,152 $1,981
SAVE 41% Sold out

BUNDLE & SAVE


add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

The SawStop® 110V, 1.75HP 10″ Professional Contractor Saw is engineered to fit the unique demands of the avid hobbyist in a home setting. Delivering the peerless fit and finish of the Professional Cabinet Saw, this saw’s 110V power and optimized footprint make it ideal for the many challenges of a home shop. With SawStop’s® legendary safety system, uncompromising quality and industry-leading dust collection, the 110V Professional Contractor Saw is engineered to be the cornerstone of a home shop. Mobile base sold separately (#22948).

More Information
Brand SawStop
Manufacturer Part Number CNS175-TGP236
Tech Spec
  • Motor: 1.75 hp, 1 phase, 110 V, 14 A
  • Weight: 225 lbs (table saw only)
  • Max. rip, right of blade: 36″
  • Cabinet footprint: 19 3/8″W x 19 3/8″D
  • Cast iron table: 20″W x 27″D, 44″W x 27″D (w/ extension wings)
  • Stamped steel extension wing: 12″W x 27″D
  • Blade: 40-tooth, professional grade, 5/8″ arbor
  • Blade diameter: 10″
  • Blade tilt: Left
  • Blade kerf: 0.118″ (3mm)
  • Blade plate thickness: 0.078″ (2mm)
  • Max. depth of cut, blade at 0°: 3-1/8″
  • Max. depth of cut, blade at 45°: 2-1/4″
  • Max. rip, left of blade: 12″
  • Dado diameter: 8″ (requires a separate brake cartridge and table insert)
  • Dado max. width: 13/16″
  • Arbor diameter at blade: 5/8″
  • Main bearing size: 62mm OD x 30mm ID
  • Second bearing size: 52mm OD x 25mm ID
  • Table in front of blade (max. elevation): 10-1/4″
  • Table behind blade (max. elevation): 7-1/2″
  • Arbor runout: 0.001″ Maximum allowable runout
  • Blade lateral movement over full elevation range: 0.006″ Maximum
  • Table flatness measured diagonally: 0.010″ Maximum gap
  • Overall table and extension wing flatness: 0.025″ maximum gap
  • Blade alignment with miter slot: 0.010″ Maximum displacement
  • Deviation of miter gauge indexing stops from actual: 0.25°
  • Alignment between spreader and blade: 0.010″ Maximum difference
  • Miter slots: T-shaped, 3/4″ at top, 1″ at bottom, 3/8″ deep
  • Riving knife / splitter thickness: 0.078″ (2mm)
  • Blade guard: polycarbonate, extends only 5/8″ to right of blade
  • Insert: zero clearance, steel core, ABS surfaces
  • Hand wheels: 7″ diameter, cast iron with chrome handle
  • Belts: 2 V-ribbed belts – arbor belt is static dissipative
